Abstract

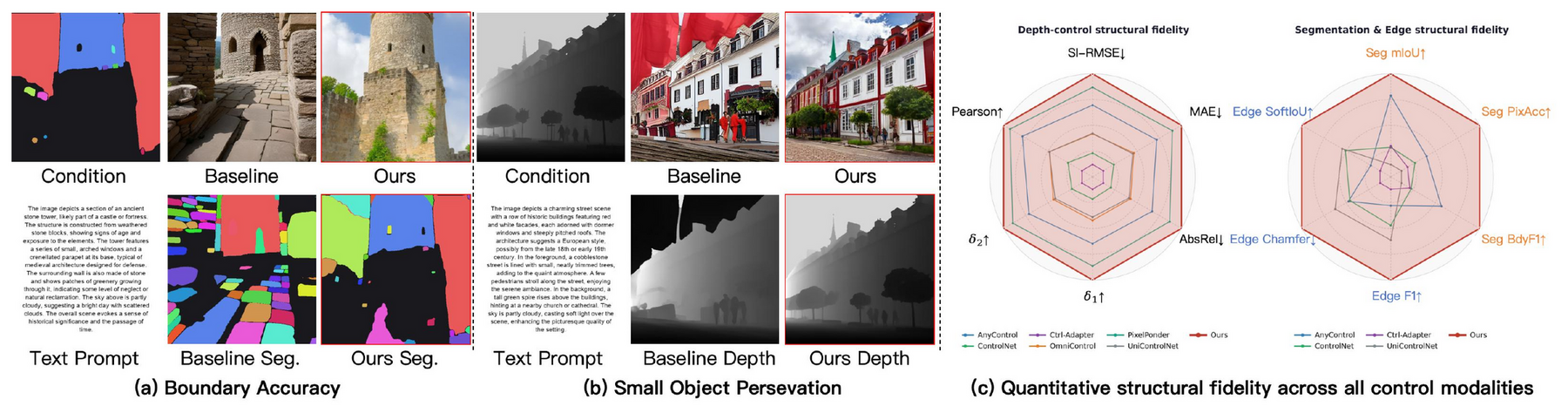

Controllable text-to-image diffusion models can often follow the global layout of spatial conditions, yet still violate fine-grained structures such as object boundaries, thin contours, and medium/small conditioned regions. This limitation is especially problematic for VAE-based latent diffusion, where spatial compression can weaken high-frequency and low-area condition signals. We propose PixelControl, a pixel-space controllable diffusion framework for fine-grained condition fidelity. Built on a PixelDiT-style backbone, PixelControl avoids the latent bottleneck and introduces two complementary designs. First, Structure-Aware Control Injection derives a condition structure map and uses it to strengthen injected control residuals around spatially sensitive regions. Second, Multi-Scale Pyramid Cycle Loss verifies generated images against condition-derived structures across multiple resolutions, balancing global layout consistency with local boundary and detail accuracy. PixelControl supports depth, segmentation, edge, and their combinations through modality-specific control branches with lightweight gated fusion. Experiments across depth, segmentation, and edge control show that PixelControl improves structural fidelity and visual quality over existing controllable generation methods, with especially strong gains on boundaries and medium/small conditioned regions.

Method

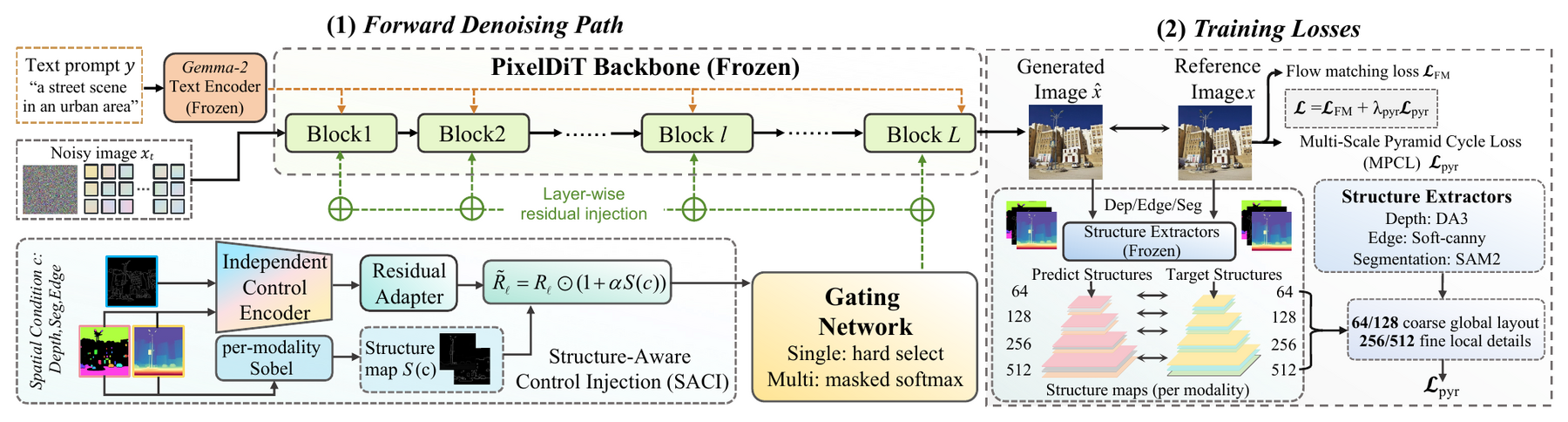

Overview of the PixelControl architecture — **Overview of PixelControl.** The condition is injected into a frozen PixelDiT backbone through structure-aware residual modulation, and the model is trained with flow matching and multi-scale cycle supervision to preserve both global layout and fine condition details.

Pixel-space backbone

Denoising happens directly in pixel space on a PixelDiT-T2I generator, avoiding the VAE latent bottleneck that attenuates sharp boundaries and low-area structures.

Structure-Aware Control Injection (SACI)

A Sobel structure map derived from the condition modulates the injected residual, strengthening control around boundaries and local discontinuities without changing the pretrained backbone.

Multi-Scale Pyramid Cycle Loss (MPCL)

Generated images are re-verified against condition-derived structures at 512/256/128/64, with coarse scales enforcing layout and fine scales enforcing boundary and detail accuracy.

Gated multi-condition control

Independent depth, segmentation, and edge branches are fused by a lightweight layer-wise gate, preserving single-condition behavior while enabling compositional control.

Results

PixelControl consistently improves structural fidelity across depth, segmentation, and edge control, with the largest gains on boundaries and non-large conditioned regions — while also achieving the best image quality (FID).

Structural fidelity and non-large region accuracy. PixelControl vs. the strongest baseline per metric.
Setting	Metric	Best baseline	PixelControl
Depth	AbsRel ↓	0.1949	0.1434
Segmentation	Boundary-F1 ↑	0.5061	0.6973
Edge	Chamfer ↓	11.53	5.456
Non-large depth	AbsRel ↓	0.2727	0.1419
Non-large edge	Chamfer ↓	4.381	2.603
Non-large seg.	Boundary-F1 ↑	0.4728	0.6409

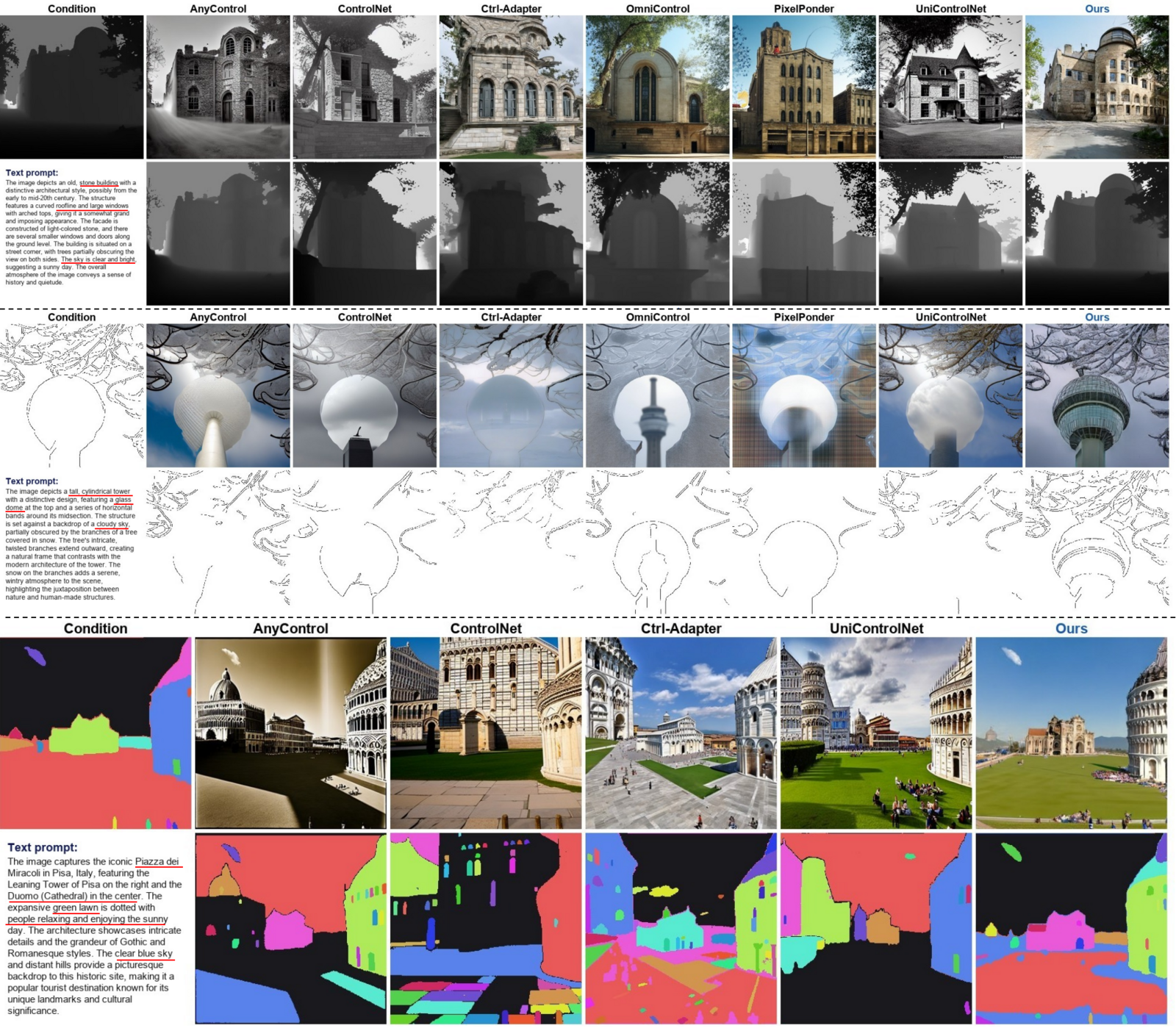

**Single-condition qualitative comparison** across depth, edge, and segmentation controls. For each example we show the input condition, generated images from all methods, and the re-estimated maps used for closed-loop verification.

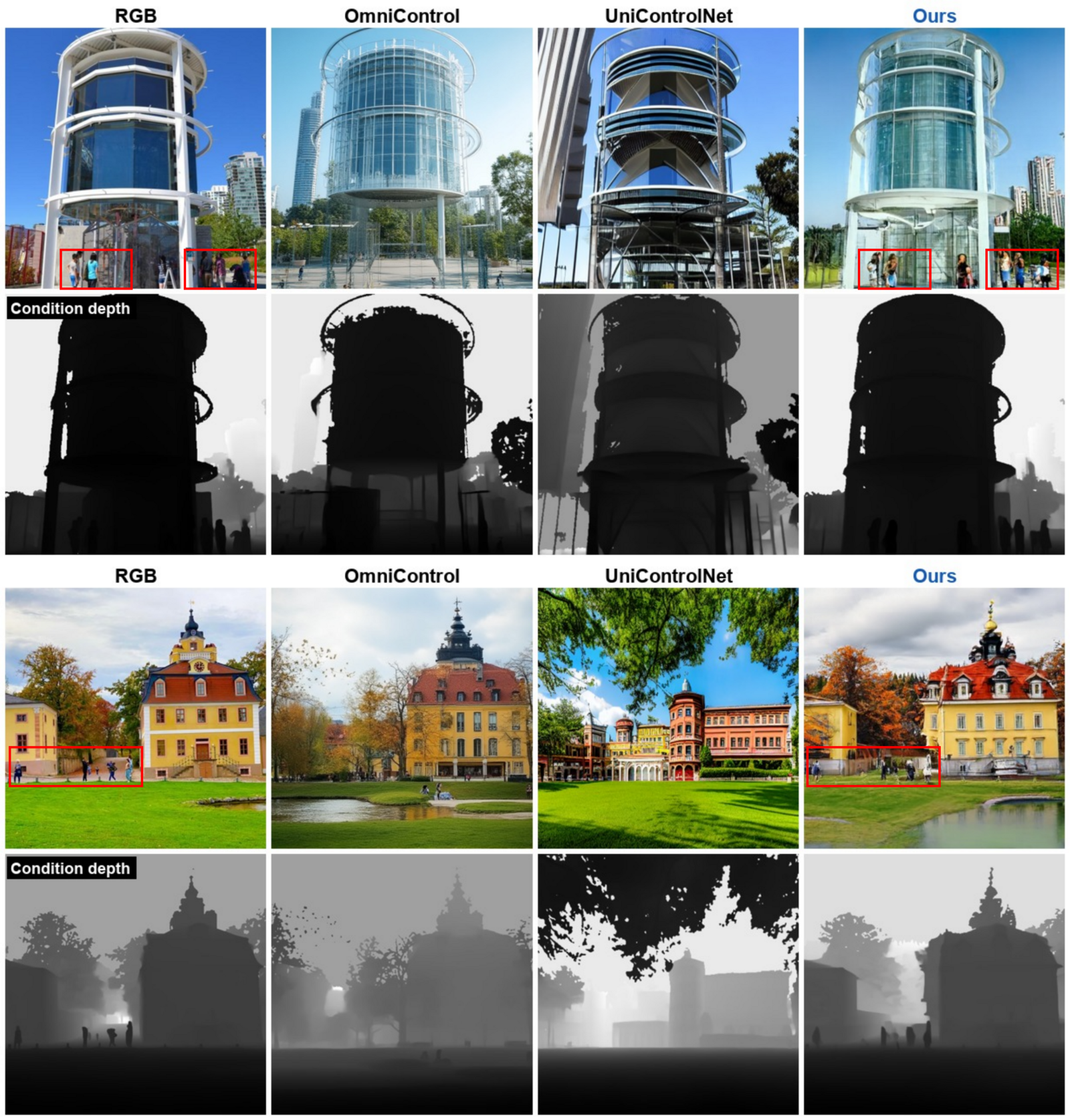

Non-large conditioned-region comparison — **Non-large conditioned regions.** Red boxes highlight small/medium structures specified by the condition; PixelControl preserves them while keeping global structure.

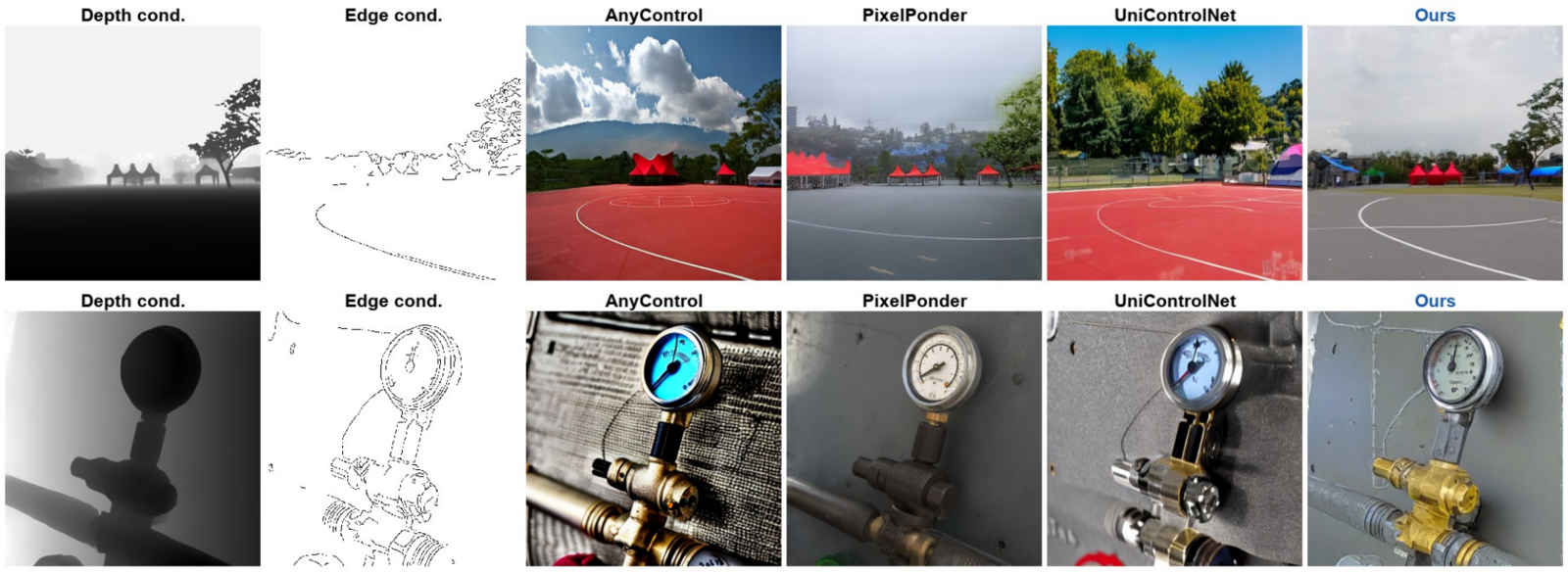

Depth + edge multi-condition comparison — **Depth + edge multi-condition control.** PixelControl follows global geometry from depth while respecting edge-specified contours, satisfying both active controls.

Supplementary

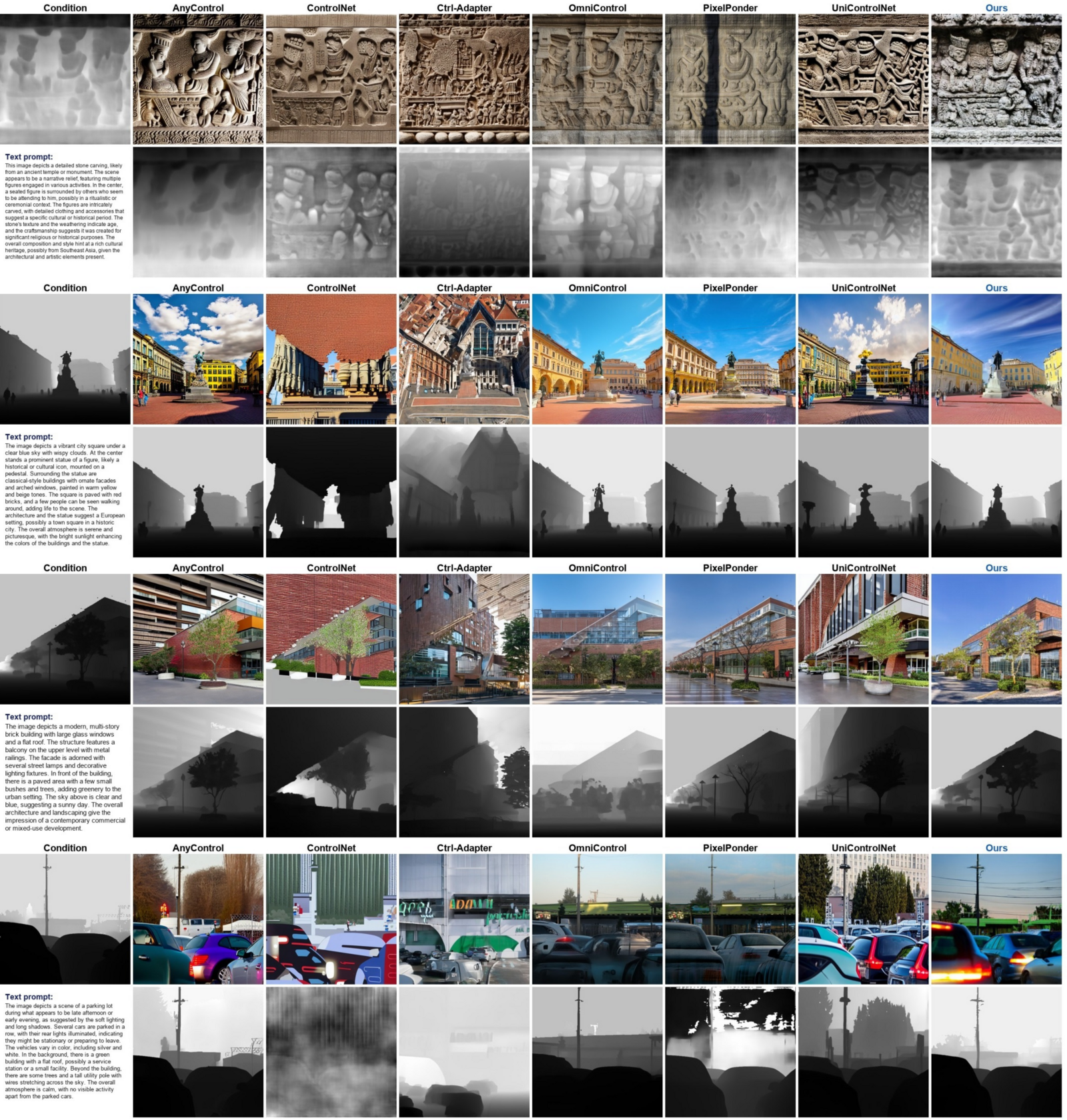

Additional depth comparisons — **Additional depth-control comparisons.**

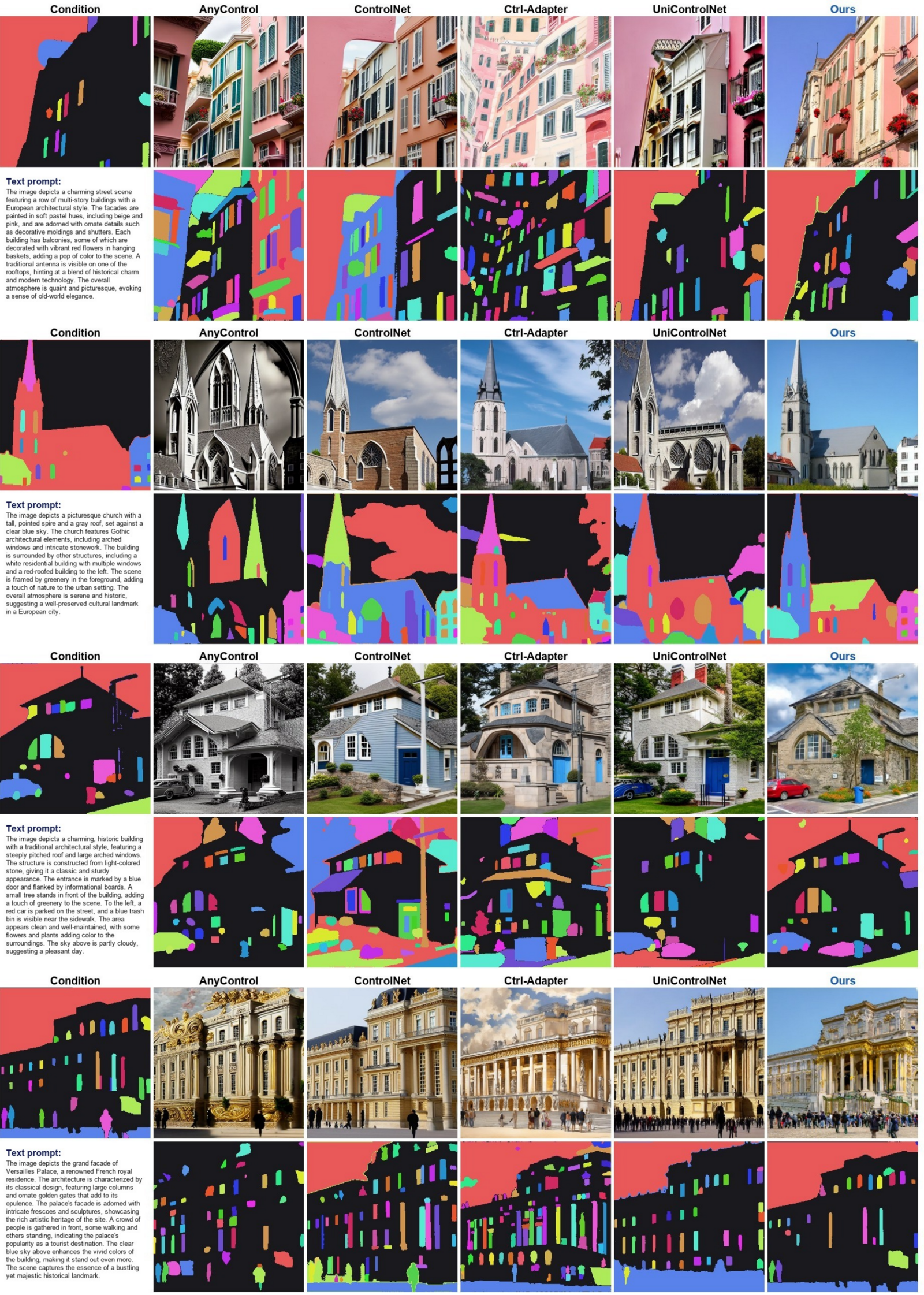

Additional segmentation comparisons — **Additional segmentation-control comparisons.**

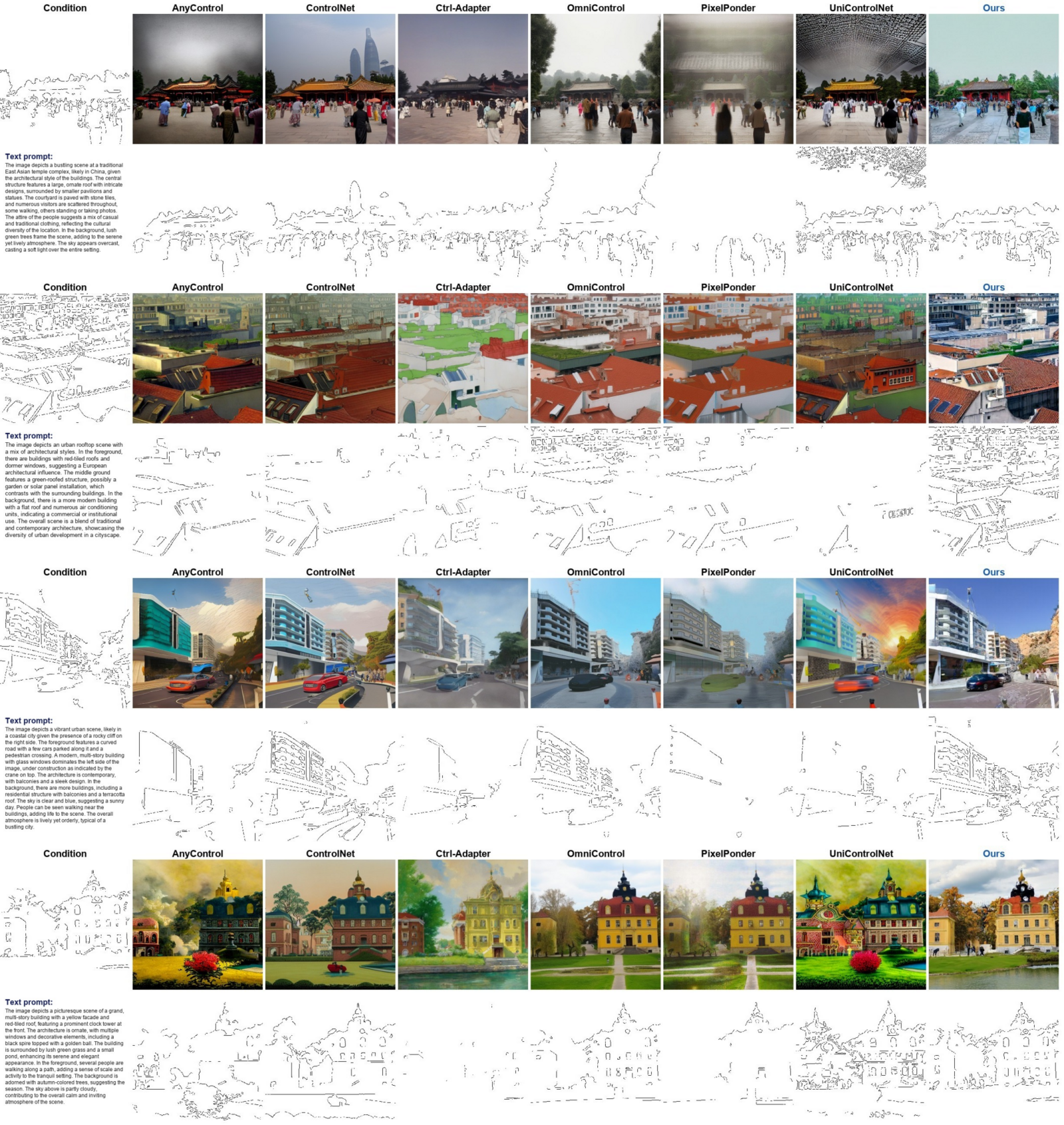

Additional edge comparisons — **Additional edge-control comparisons.**
